FFD105-12
Full Force Series AGM Batteries
Display Units:
Imperial
Metric
BCI Group Size
27
Capacity @ C20
105 Ah
Reserve Capacity @ 25A
175 minutes
CCA
680 Amps
Dimensions
12.13 x 6.61 x 9.33 inches
Weight
66.2 lbs.
Electrical Specifications
Nominal Voltage
12-Volt
Capacity @ C100
116 Ah
Capacity @ C20
105 Ah
Capacity @ C10
99 Ah
Capacity @ C5
86 Ah
Reserve Capacity @ 25A
175 minutes
Reserve Capacity @ 75A
43 minutes
CCA
680 Amps
CA / MCA
820 Amps
Internal Resistance
4.5 mΩ
Mechanical Specifications
BCI Group Size
27
Terminal Type
M8 + TP28
Terminal Torque
5.2 - 6.7
62 - 80
7 - 9
Length
12.13 inches
Width
6.61 inches
Height (case only)
8.31 inches
Total Height (with terminals)
9.33 inches
Weight
66.2 lbs.
Case Type
ABS Plastic
Discharge Table

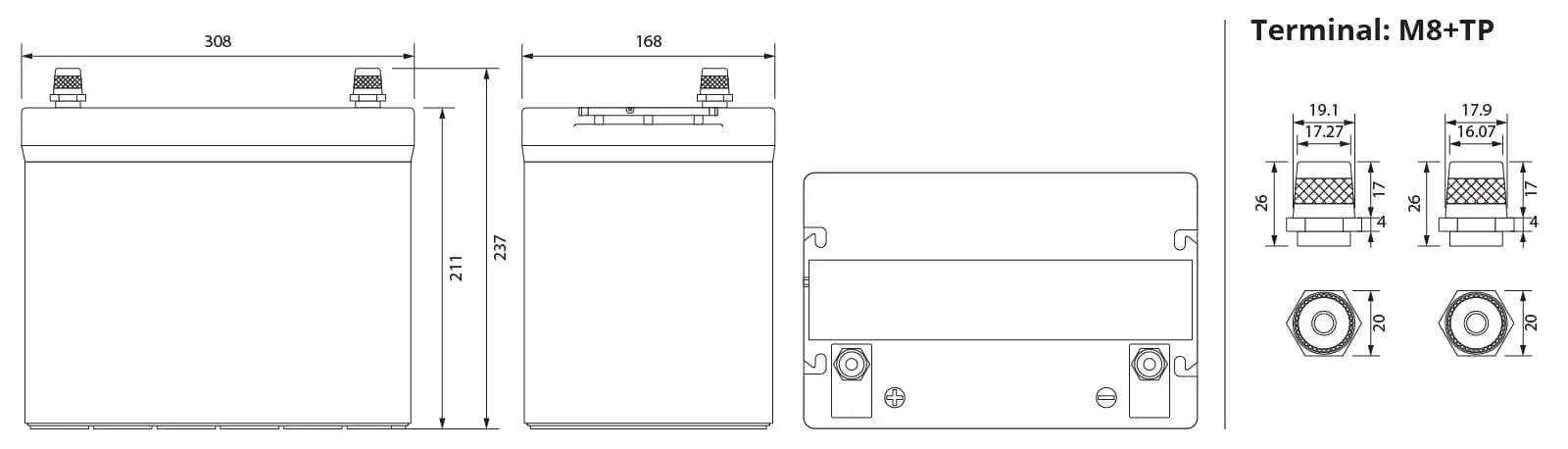

Battery & Terminal Dimensions
