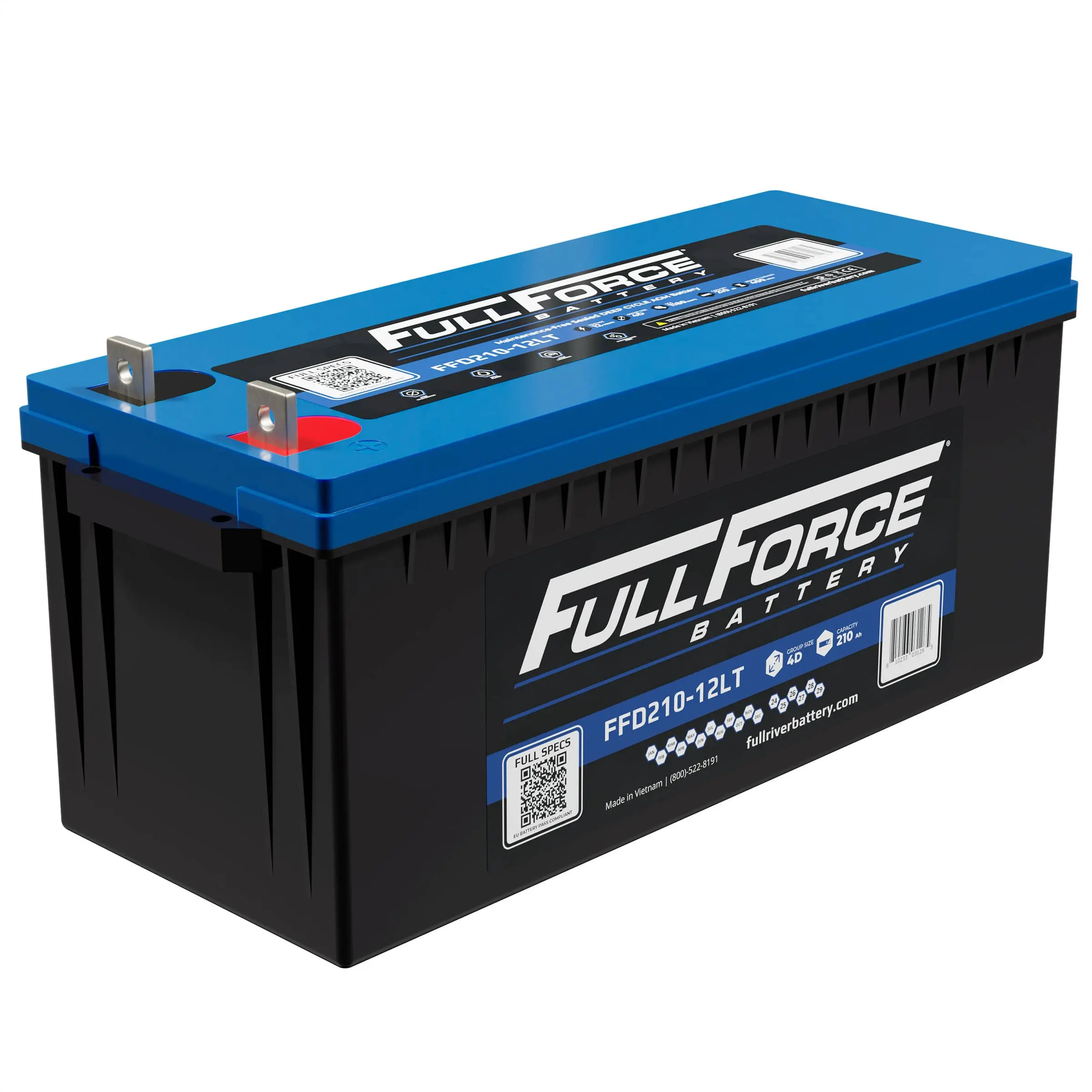

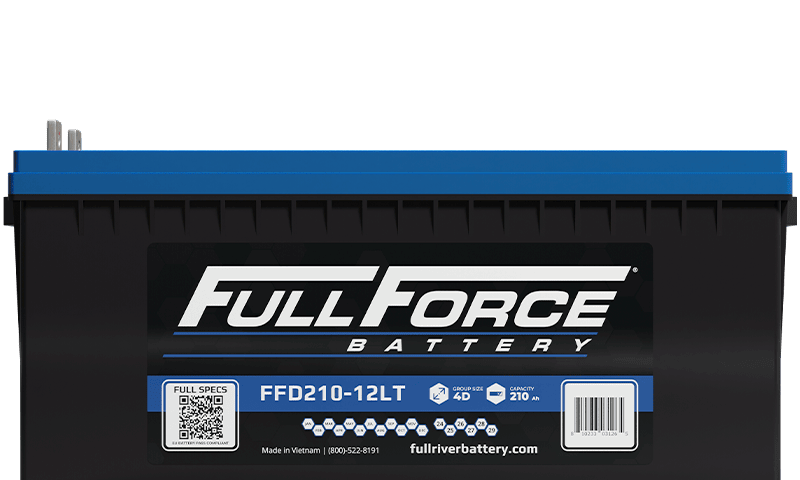

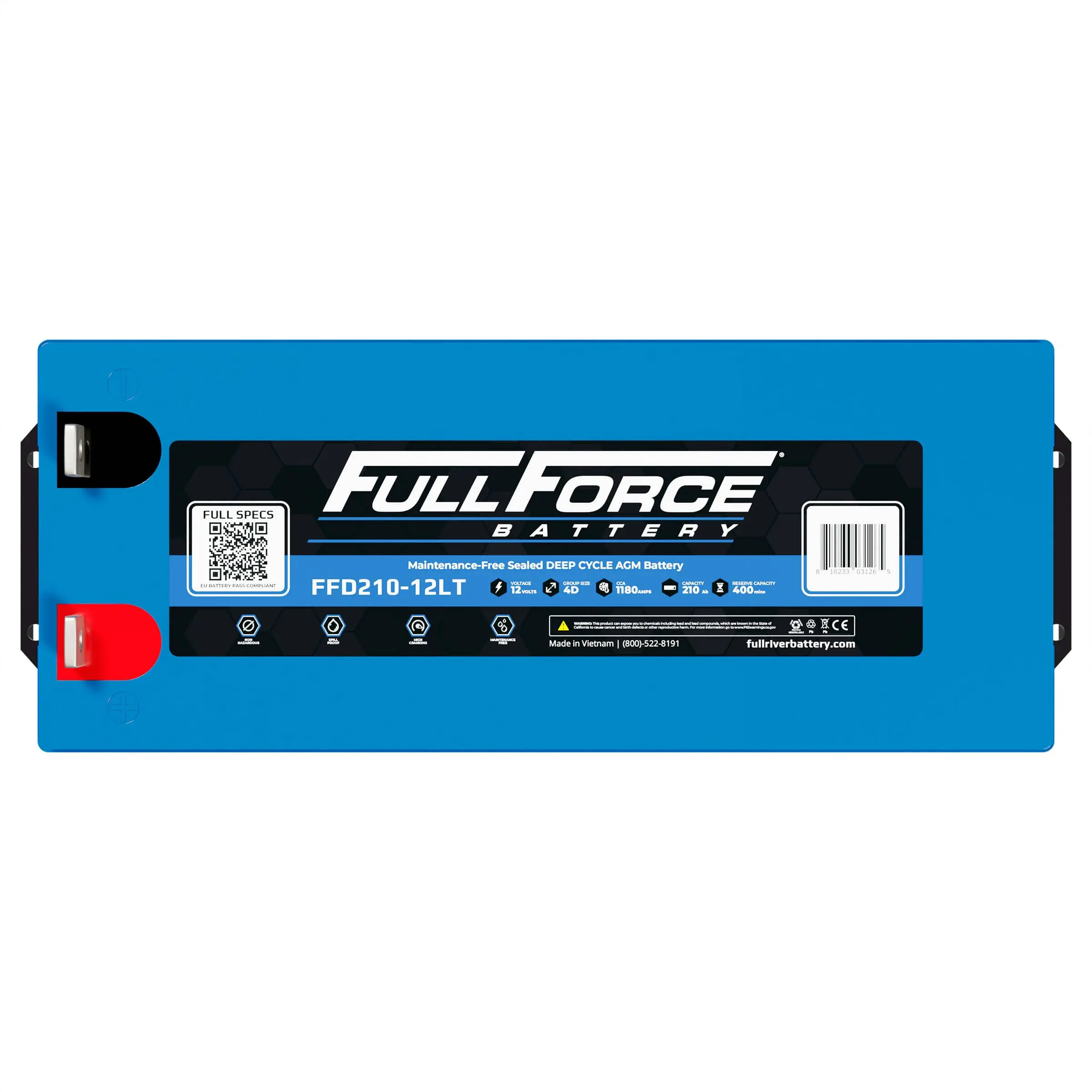

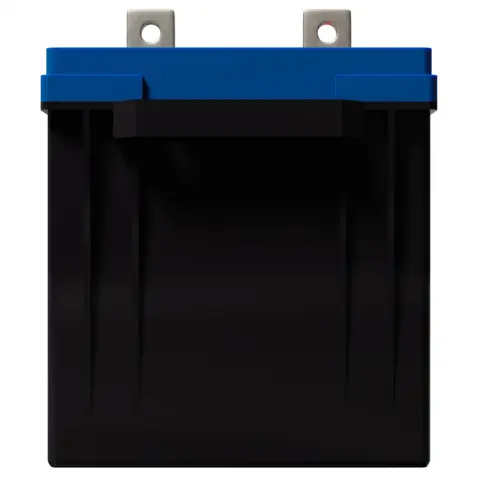

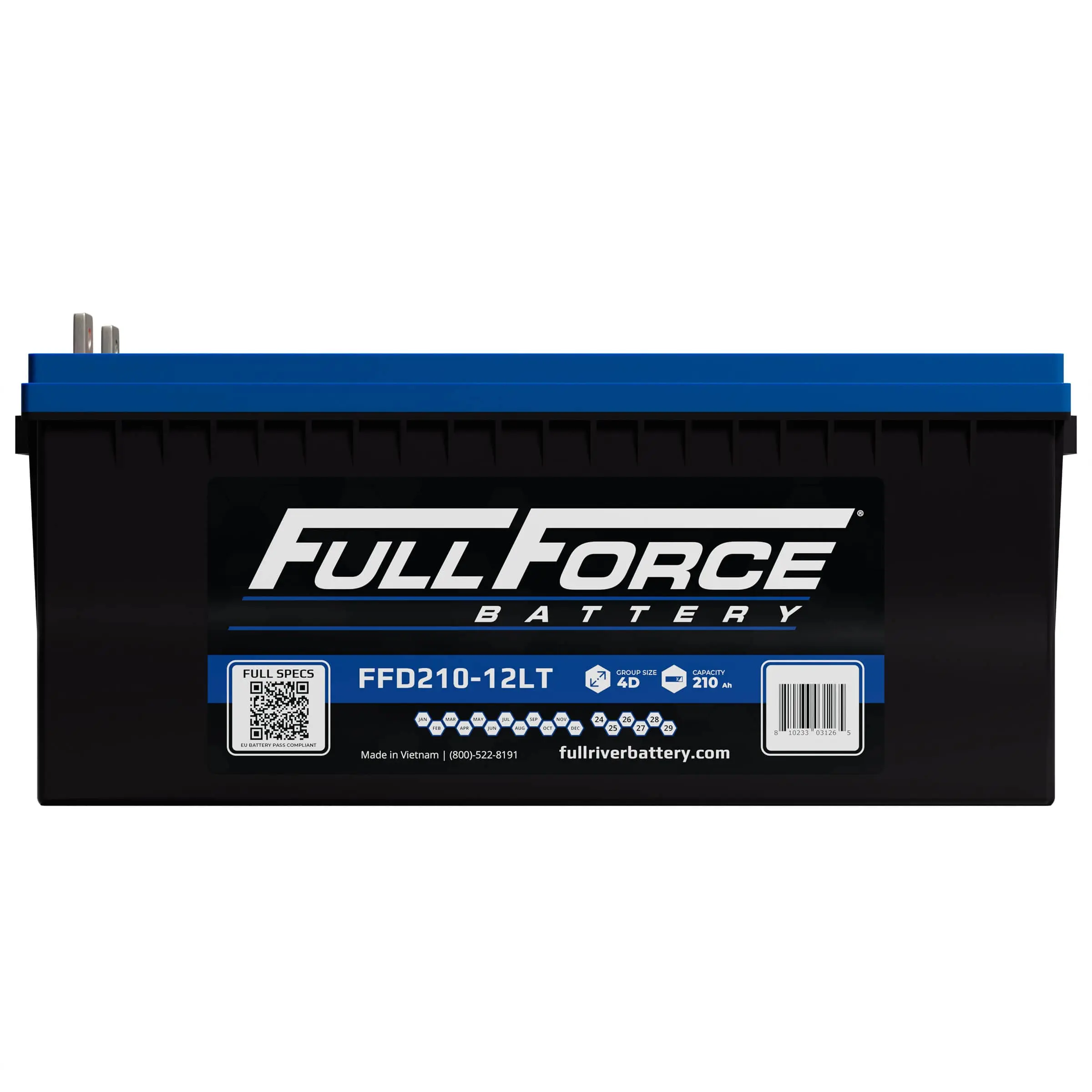

FFD210-12LT
Full Force Series AGM Batteries
Display Units:
Imperial
Metric
BCI Group Size
4D
Capacity @ C20
210 Ah
Reserve Capacity @ 25A
400 minutes
CCA
1180 Amps
Dimensions
20.94 x 8.11 x 9.39 inches
Weight
129.0 lbs.
Electrical Specifications
Nominal Voltage
12-Volt
Capacity @ C100
231 Ah
Capacity @ C20
210 Ah
Capacity @ C10
197 Ah
Capacity @ C5
172 Ah
Reserve Capacity @ 25A
400 minutes
Reserve Capacity @ 75A
105 minutes
CCA
1180 Amps
CA / MCA
1425 Amps
Internal Resistance
3.0 mΩ
Mechanical Specifications
BCI Group Size
4D
Terminal Type
M8
Terminal Torque
5.2 - 6.7
62 - 80
7 - 9
Length
20.94 inches
Width
8.11 inches
Height (case only)
8.43 inches
Total Height (with terminals)
9.39 inches
Weight
129.0 lbs.
Case Type
ABS Plastic
Discharge Table

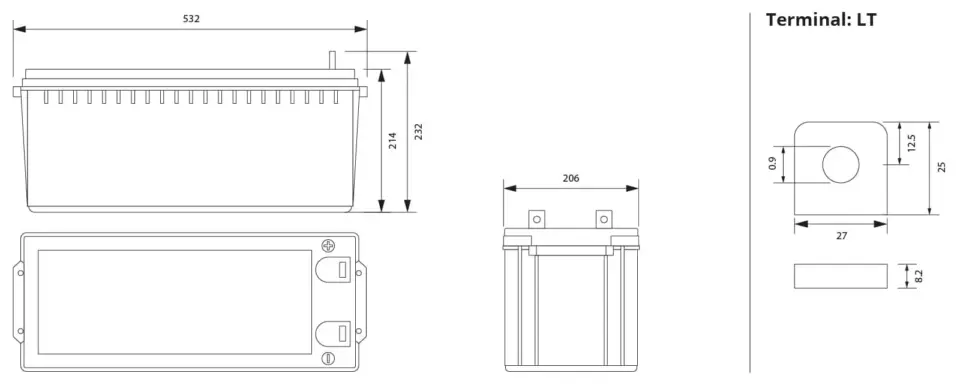

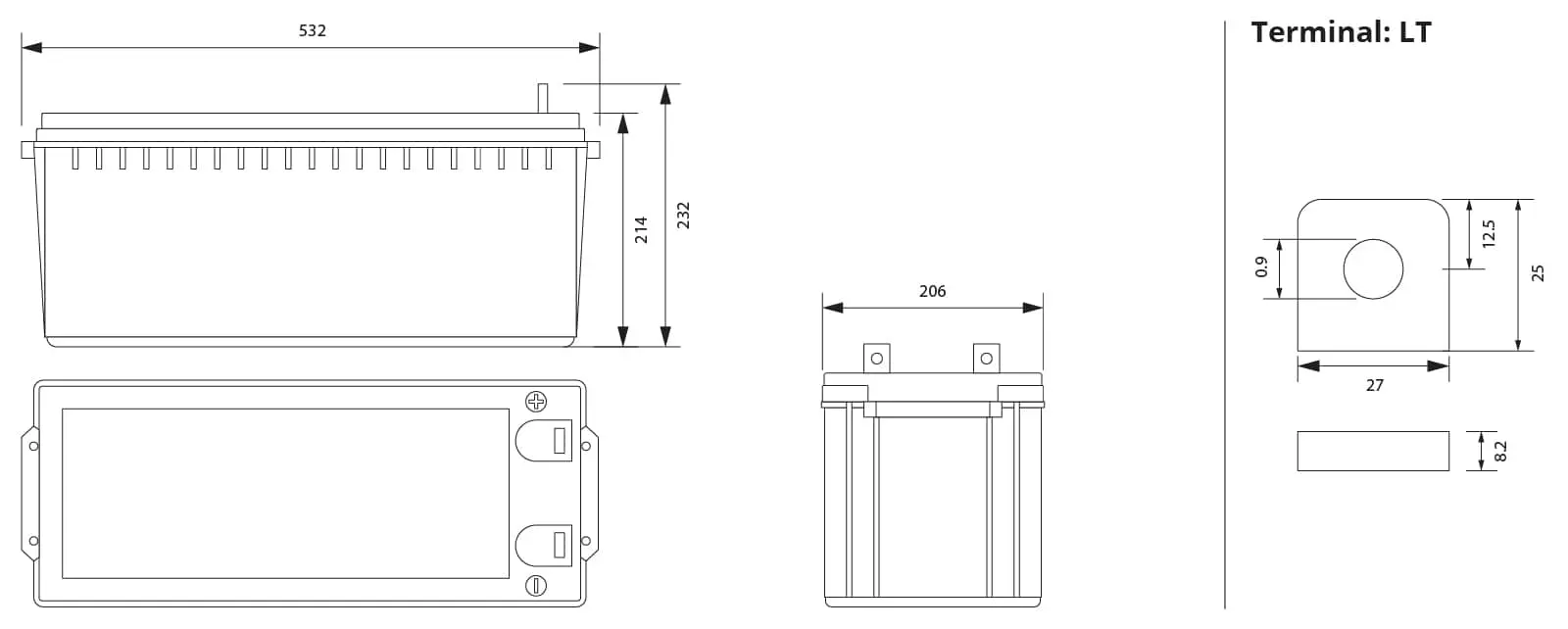

Battery & Terminal Dimensions
