FFD215-12
Full Force Series AGM Batteries
Display Units:
Imperial
Metric
BCI Group Size
921 / J85
Capacity @ C20
215 Ah
Reserve Capacity @ 25A
420 minutes
CCA
1000 Amps
Dimensions
15.04 x 7.09 x 14.61 inches
Weight
131.8 lbs.
Electrical Specifications
Nominal Voltage
12-Volt
Capacity @ C100
237 Ah
Capacity @ C20
215 Ah
Capacity @ C10
202 Ah
Capacity @ C5
172 Ah
Reserve Capacity @ 25A
420 minutes
Reserve Capacity @ 75A
100 minutes
CCA
1000 Amps
CA / MCA
1200 Amps
Internal Resistance
2.8 mΩ
Mechanical Specifications
BCI Group Size
921 / J85
Terminal Type
DT
Terminal Torque
N/A
N/A
N/A
Length
15.04 inches
Width
7.09 inches
Height (case only)
13.82 inches
Total Height (with terminals)
14.61 inches
Weight
131.8 lbs.
Case Type
ABS Plastic
Discharge Table

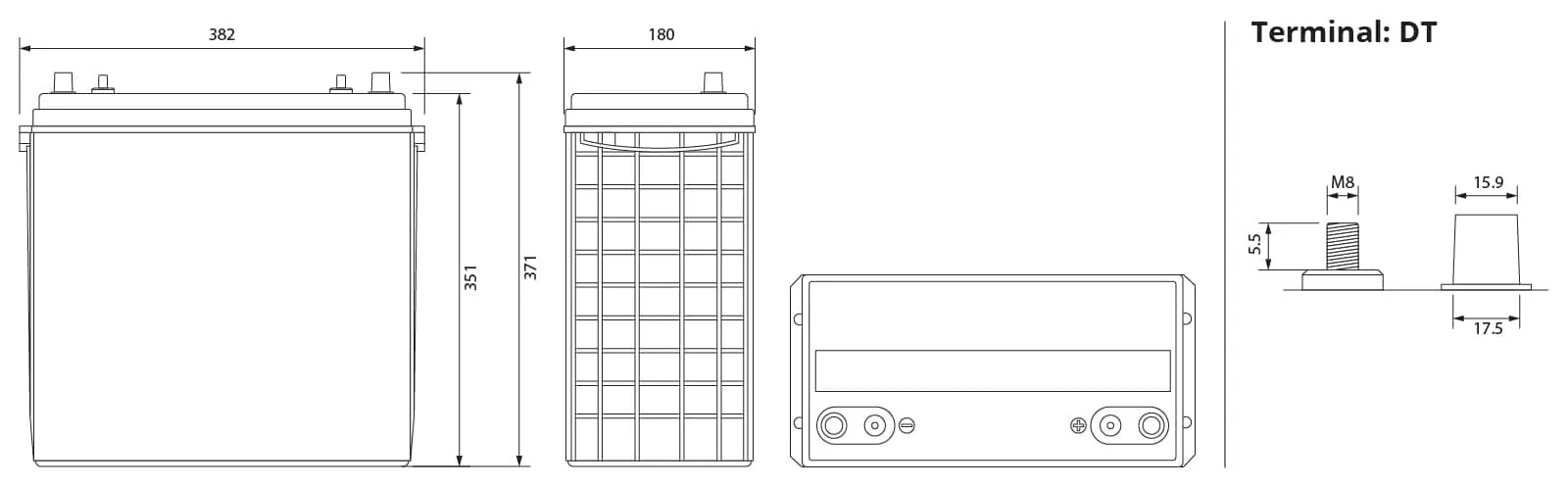

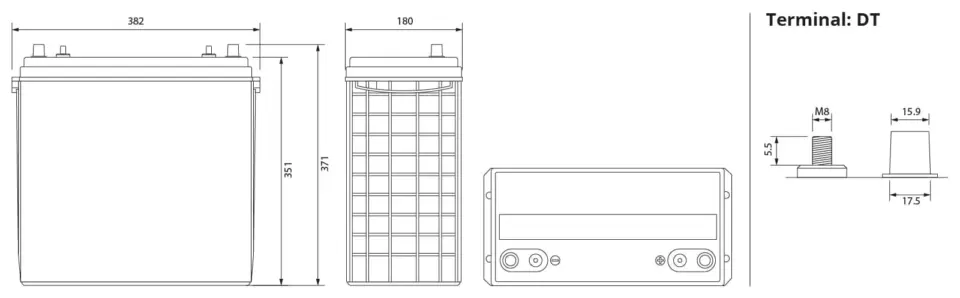

Battery & Terminal Dimensions
