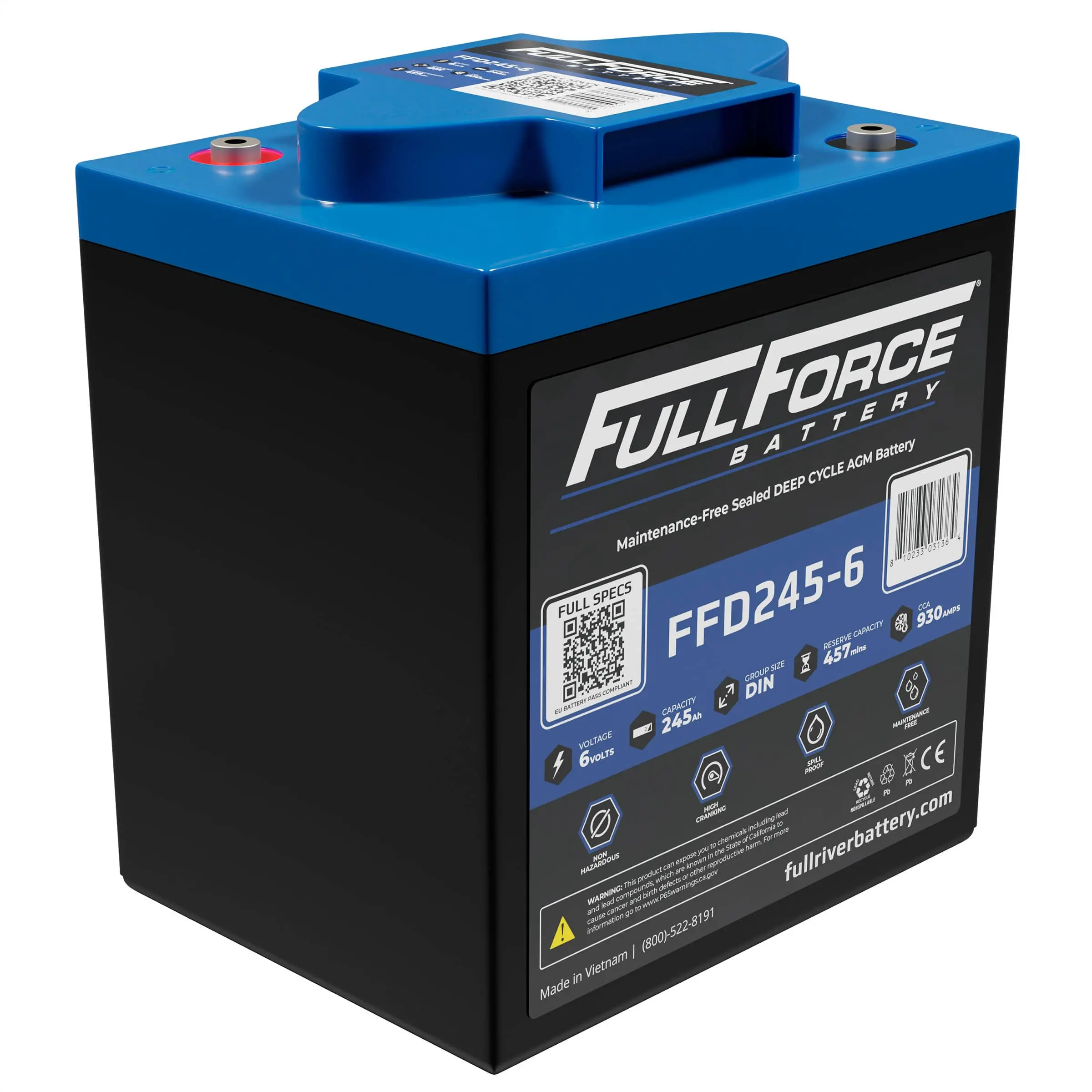

FFD245-6
Full Force Series AGM Batteries
Display Units:
Imperial
Metric
BCI Group Size
DIN
Capacity @ C20
245 Ah
Reserve Capacity @ 25A
457 minutes
CCA
930 Amps
Dimensions
9.57 x 7.40 x 10.83 inches
Weight
73.85 lbs.
Electrical Specifications
Nominal Voltage
6-Volt
Capacity @ C100
270 Ah
Capacity @ C20
245 Ah
Capacity @ C10
230 Ah
Capacity @ C5
198 Ah
Reserve Capacity @ 25A
457 minutes
Reserve Capacity @ 56A
120 minutes
CCA
930 Amps
CA / MCA
1120 Amps
Internal Resistance
2.0 mΩ
Mechanical Specifications
BCI Group Size
DIN
Terminal Type
M8 + TP28
Terminal Torque
5.2 - 6.7
62 - 80
7 - 9
Length
9.57 inches
Width
7.40 inches
Height (case only)
10.83 inches
Total Height (with terminals)
10.83 inches
Weight
73.85 lbs.
Case Type
ABS Plastic
