FFD260-12APW
Full Force Series AGM Batteries
Display Units:
Imperial
Metric
BCI Group Size
8D
Capacity @ C20
260 Ah
Reserve Capacity @ 25A
578 minutes
CCA
1525 Amps
Dimensions
20.47 x 10.55 x 9.63 inches
Weight
165.4 lbs.
Electrical Specifications
Nominal Voltage
12-Volt
Capacity @ C100
286 Ah
Capacity @ C20
260 Ah
Capacity @ C10
244 Ah
Capacity @ C5
214 Ah
Reserve Capacity @ 25A
578 minutes
Reserve Capacity @ 75A
145 minutes
CCA
1525 Amps
CA / MCA
1830 Amps
Internal Resistance
2.8 mΩ
Mechanical Specifications
BCI Group Size
8D
Terminal Type
APW
Terminal Torque
4.2 - 5.8
50 - 70
5.6 - 7.9
Length
20.47 inches
Width
10.55 inches
Height (case only)
8.66 inches
Total Height (with terminals)
9.63 inches
Weight
165.4 lbs.
Case Type
ABS Plastic
Discharge Table

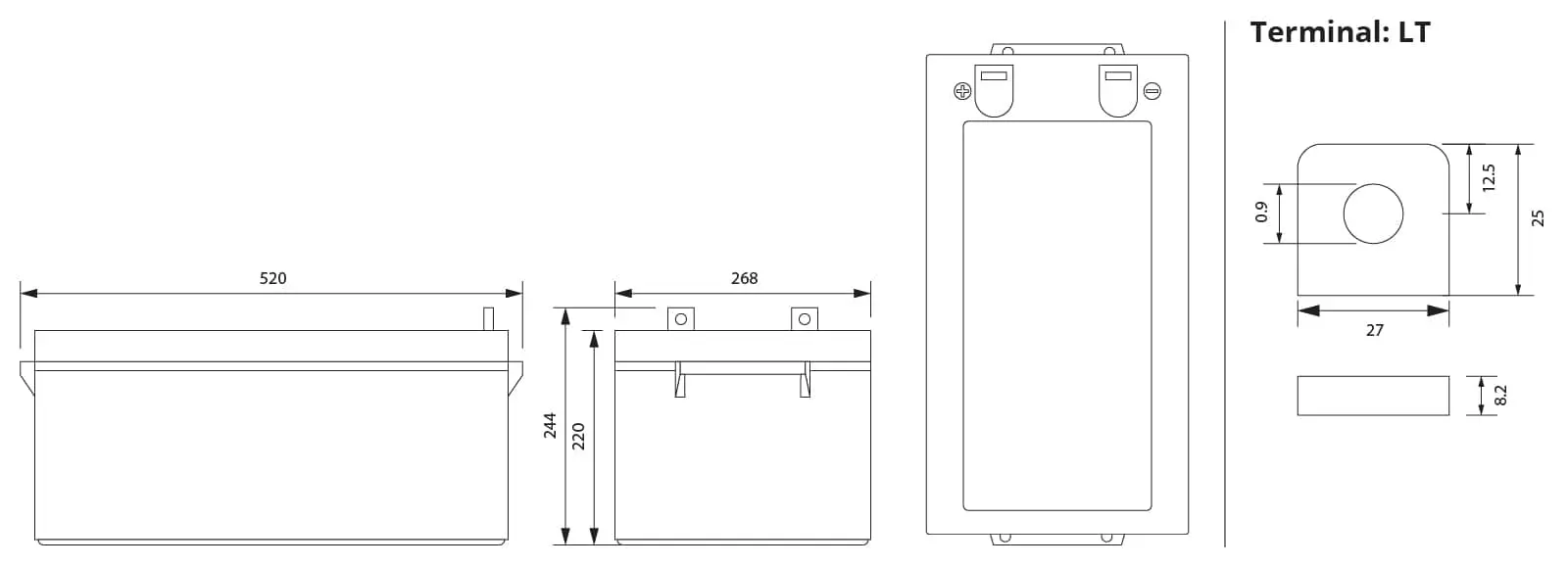

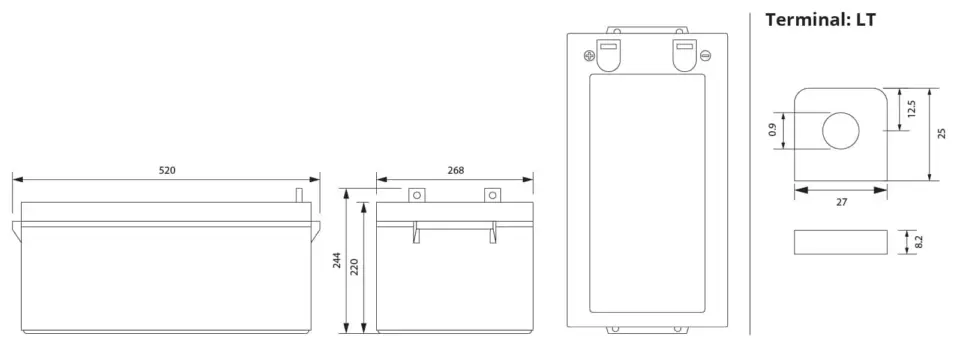

Battery & Terminal Dimensions
