FFD335-6
Full Force Series AGM Batteries
Display Units:
Imperial
Metric
BCI Group Size
J305 / 902
Capacity @ C20
335 Ah
Reserve Capacity @ 25A
751 minutes
CCA
1300 Amps
Dimensions
11.65 x 7.01 x 14.49 inches
Weight
103.6 lbs.
Electrical Specifications
Nominal Voltage
6-Volt
Capacity @ C100
369 Ah
Capacity @ C20
335 Ah
Capacity @ C10
315 Ah
Capacity @ C5
274 Ah
Reserve Capacity @ 25A
751 minutes
Reserve Capacity @ 75A
184 minutes
CCA
1300 Amps
CA / MCA
1560 Amps
Internal Resistance
1.6 mΩ
Mechanical Specifications
BCI Group Size
J305 / 902
Terminal Type
DT
Length
11.65 inches
Width
7.01 inches
Height (case only)
13.62 inches
Total Height (with terminals)
14.49 inches
Weight
103.6 lbs.
Case Type
ABS Plastic
Discharge Table

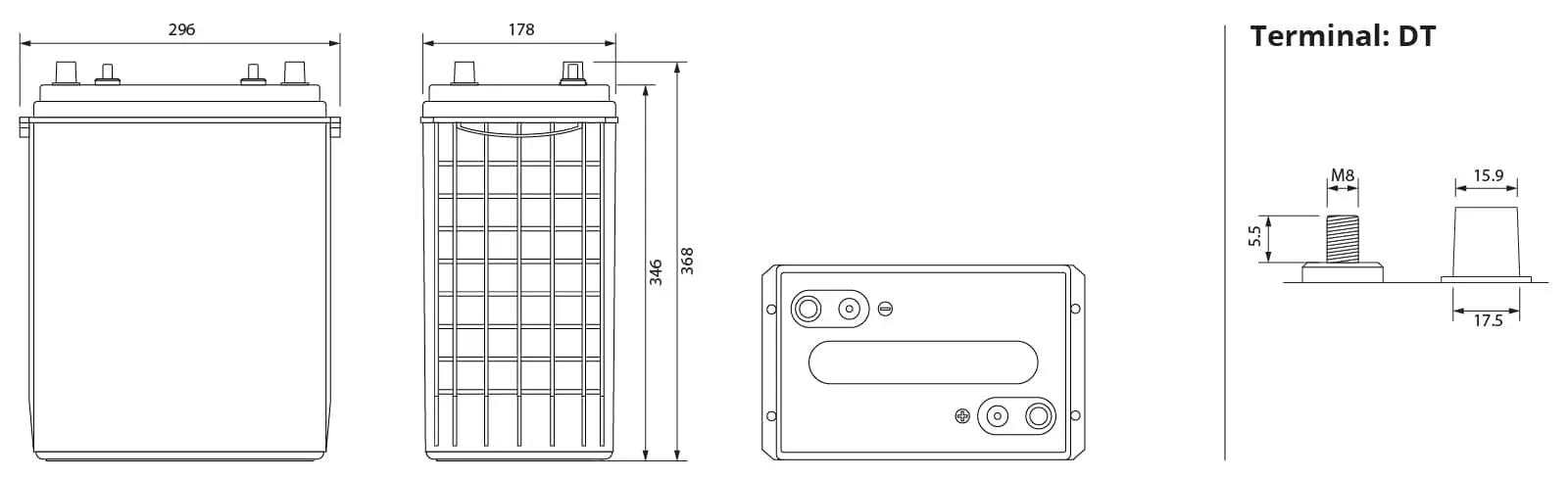

Battery & Terminal Dimensions
