FFD35-12
Full Force Series AGM Batteries
Display Units:
Imperial
Metric
BCI Group Size
U1
Capacity @ C20
35 Ah
Reserve Capacity @ 25A
52 minutes
CCA
190 Amps
Dimensions
7.72 x 5.16 x 6.61 inches
Weight
23.4 lbs.
Electrical Specifications
Nominal Voltage
12-Volt
Capacity @ C100
39 Ah
Capacity @ C20
35 Ah
Capacity @ C10
33 Ah
Capacity @ C5
29 Ah
Reserve Capacity @ 25A
52 minutes
CCA
190 Amps
CA / MCA
230 Amps
Internal Resistance
11.0 mΩ
Mechanical Specifications
BCI Group Size
U1
Terminal Type
M6
Terminal Torque
3.3 - 4.8
40 - 57.5
4.5 - 6.5
Length
7.72 inches
Width
5.16 inches
Height (case only)
6.42 inches
Total Height (with terminals)
6.61 inches
Weight
23.4 lbs.
Case Type
ABS Plastic
Discharge Table

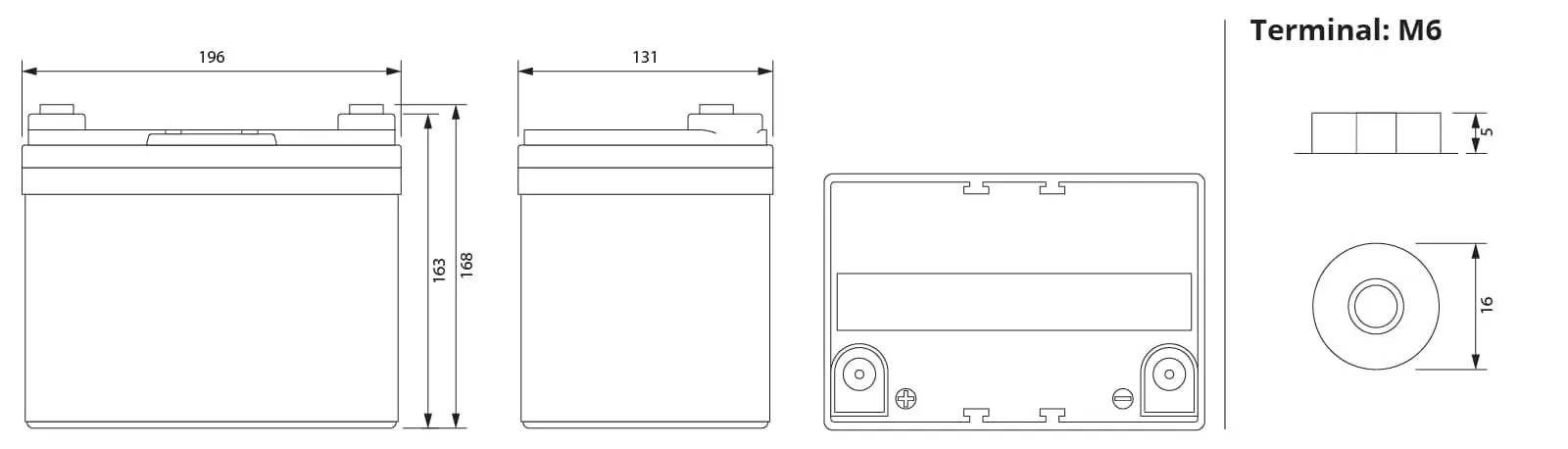

Battery & Terminal Dimensions
