FFD400-6
Full Force Series AGM Batteries
Display Units:
Imperial
Metric
BCI Group Size
L16 / 903
Capacity @ C20
400 Ah
Reserve Capacity @ 25A
885 minutes
CCA
1500 Amps
Dimensions
11.65 x 7.01 x 16.77 inches
Weight
123.50 lbs.
Electrical Specifications
Nominal Voltage
6-Volt
Capacity @ C100
440 Ah
Capacity @ C20
400 Ah
Capacity @ C10
390 Ah
Capacity @ C5
340 Ah
Reserve Capacity @ 25A
885 minutes
Reserve Capacity @ 75A
229 minutes
CCA
1500 Amps
CA / MCA
1800 Amps
Internal Resistance
1.5 mΩ
Mechanical Specifications
BCI Group Size
L16 / 903
Terminal Type
DT
Length
11.65 inches
Width
7.01 inches
Height (case only)
15.94 inches
Total Height (with terminals)
16.77 inches
Weight
123.50 lbs.
Case Type
ABS Plastic
Discharge Table

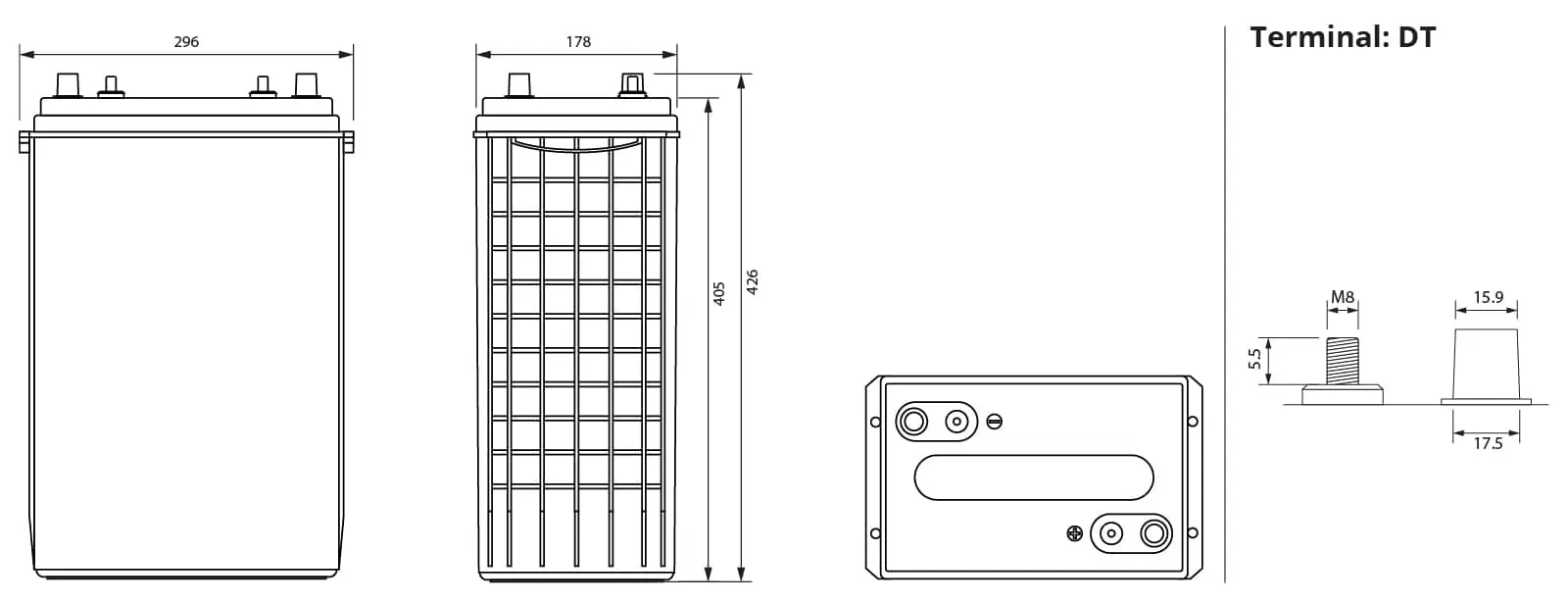

Battery & Terminal Dimensions
