FFD55-12
Full Force Series AGM Batteries
Display Units:
Imperial
Metric
BCI Group Size
22NF
Alt BCI Group Sizes
51
Capacity @ C20
55 Ah
Reserve Capacity @ 25A
96 minutes
CCA
400 Amps
Dimensions
9.06 x 5.43 x 8.46 inches
Weight
36.8 lbs.
Electrical Specifications
Nominal Voltage
12-Volt
Capacity @ C100
61 Ah
Capacity @ C20
55 Ah
Capacity @ C10
52 Ah
Capacity @ C5
45 Ah
Reserve Capacity @ 25A
96 minutes
Reserve Capacity @ 75A
21 minutes
CCA
400 Amps
CA / MCA
480 Amps
Internal Resistance
7.2 mΩ
Mechanical Specifications
BCI Group Size
22NF
Terminal Type
M6
Terminal Torque
3.3 - 4.8
40 - 57.5
4.5 - 6.5
Length
9.06 inches
Width
5.43 inches
Height (case only)
8.27 inches
Total Height (with terminals)
8.46 inches
Weight
36.8 lbs.
Case Type
ABS Plastic
Discharge Table

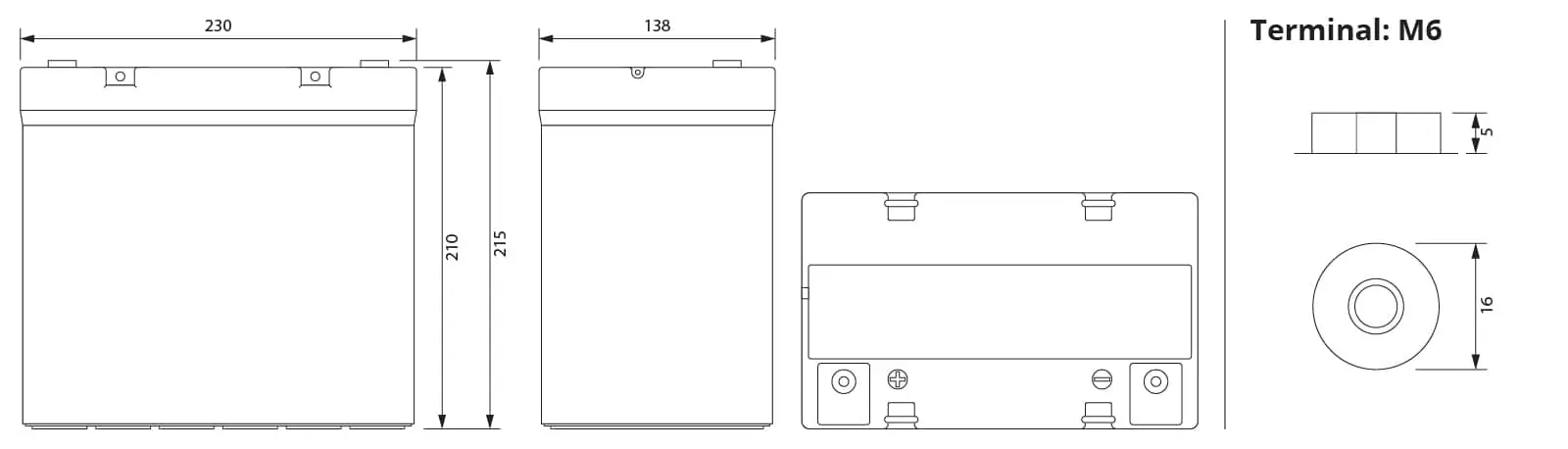

Battery & Terminal Dimensions
