FFD85-12
Full Force Series AGM Batteries
Display Units:
Imperial
Metric
BCI Group Size
24
Capacity @ C20
85 Ah
Reserve Capacity @ 25A
145 minutes
CCA
510 Amps
Dimensions
10.24 x 6.61 x 9.33 inches
Weight
55.1 lbs.
Electrical Specifications
Nominal Voltage
12-Volt
Capacity @ C100
94 Ah
Capacity @ C20
85 Ah
Capacity @ C10
80 Ah
Capacity @ C5
70 Ah
Reserve Capacity @ 25A
145 minutes
Reserve Capacity @ 75A
34 minutes
CCA
510 Amps
CA / MCA
600 Amps
Internal Resistance
5.5 mΩ
Mechanical Specifications
BCI Group Size
24
Terminal Type
M8 + TP28
Terminal Torque
5.2 - 6.7
62 - 80
7 - 9
Length
10.24 inches
Width
6.61 inches
Height (case only)
8.31 inches
Total Height (with terminals)
9.33 inches
Weight
55.1 lbs.
Case Type
ABS Plastic
Discharge Table

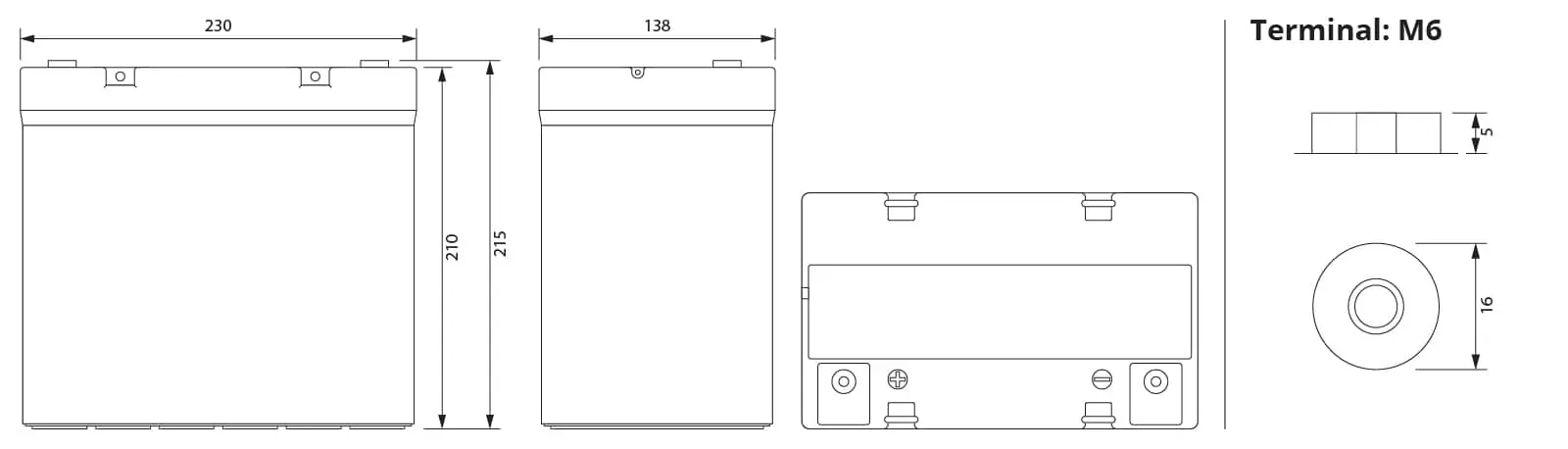

Battery & Terminal Dimensions
